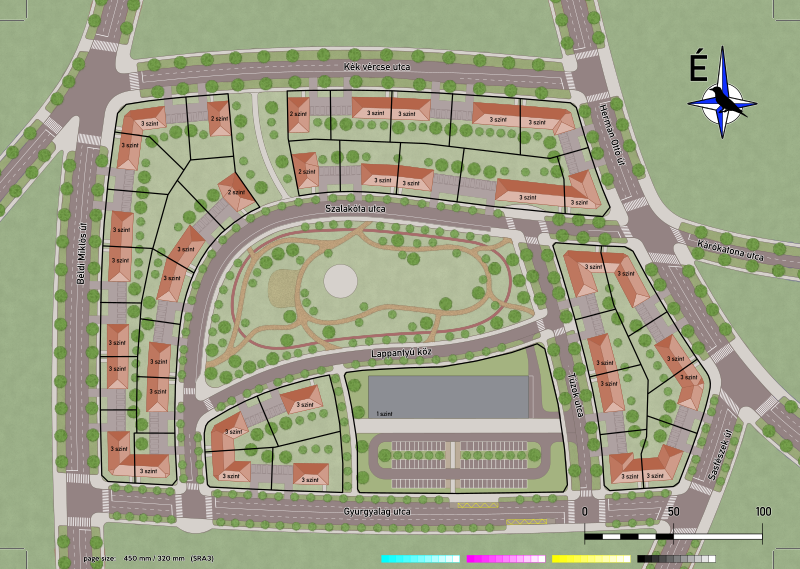

A site plan of a few building blocks in the fictionary city of Harkálybattyán, showing the planning of the "Szalakóta lakópark" (roller subdivision).
Scale is in M=1:1000, page is set print ready on an SRA3 size paper, with trim marks for an A3 size output.
Was part of a school project for a subject in Contemporary Urban Design. Now that I fulfilled the subject, releasing the design to public domain.
