DIN A0 technical drawing format and folding

by Lazur URH

2014-09-08 18:59:52

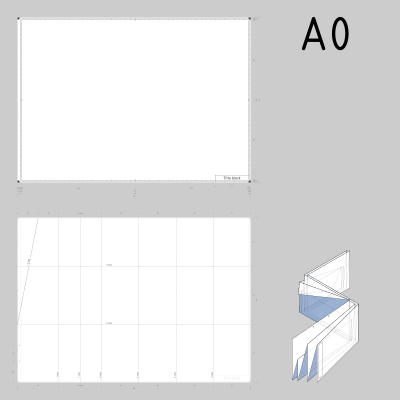

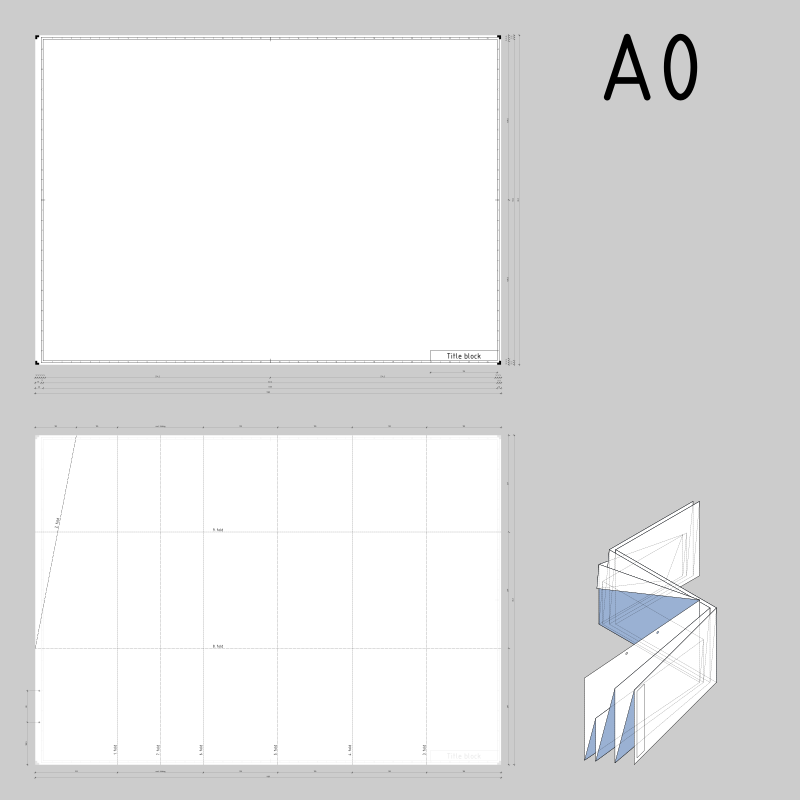

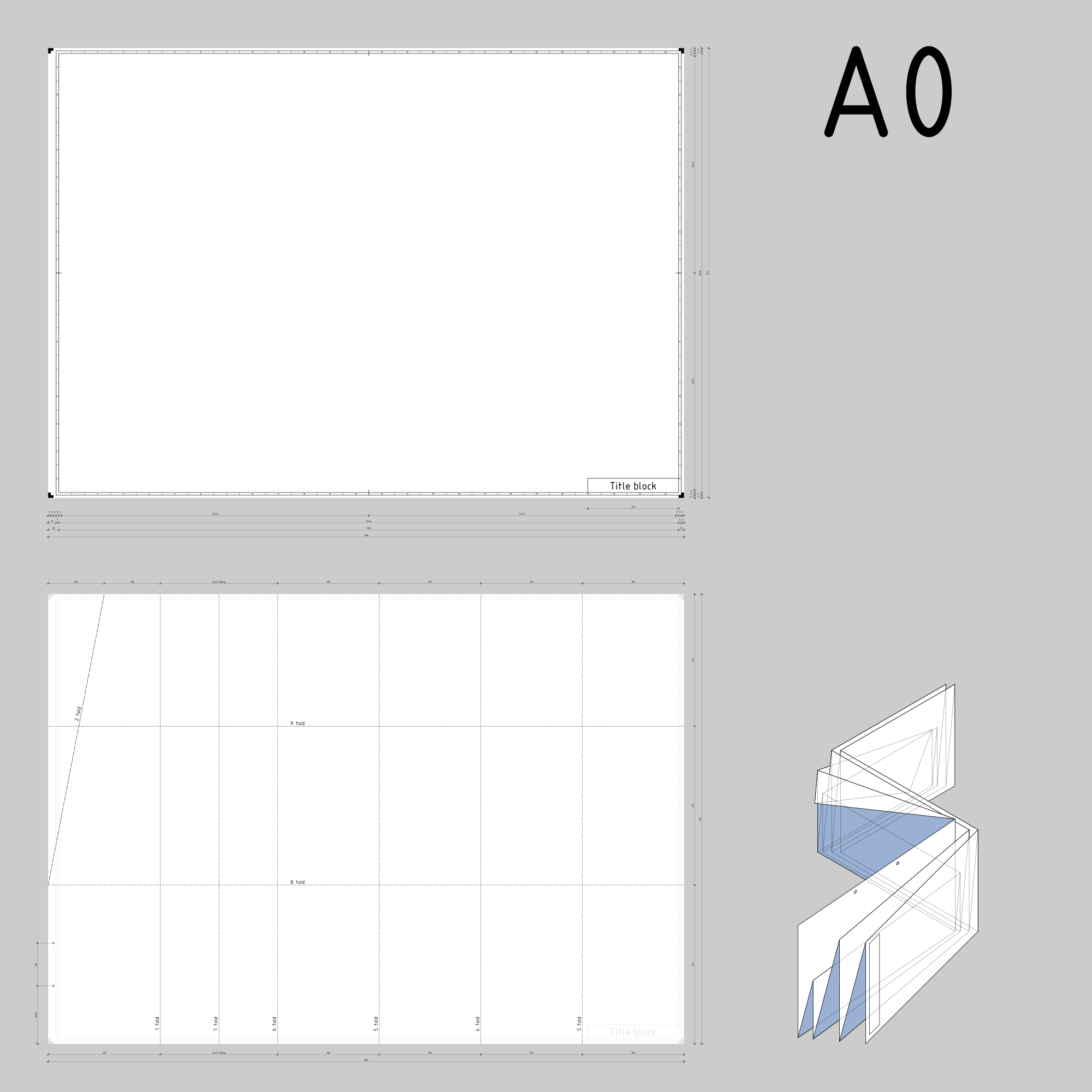

Sheet layout of A0 sized technical drawings. The paper size is DIN 823 and ISO 216 compatible -"the A series". The layout is ISO 5457 compatible. Other standards to handle with care: ISO 838 for filing holes and ISO 7200 for title block.

Tags: 2014, A0, DIN, DIN 823, DIN 824, ISO, ISO 216, ISO 5457, ISO 7200, ISO 838, Lazur, URH, architecture, drafting, drawing, engineering, filing, folding, layout, planning, sheet, size, technical, template,
