DIN A2.0 technical drawing format and folding
- By
- Lazur URH
- Created
- 2014-09-08
- Description

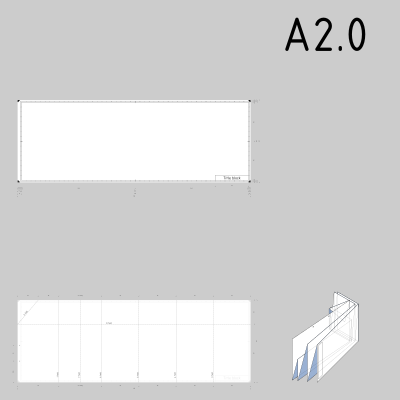

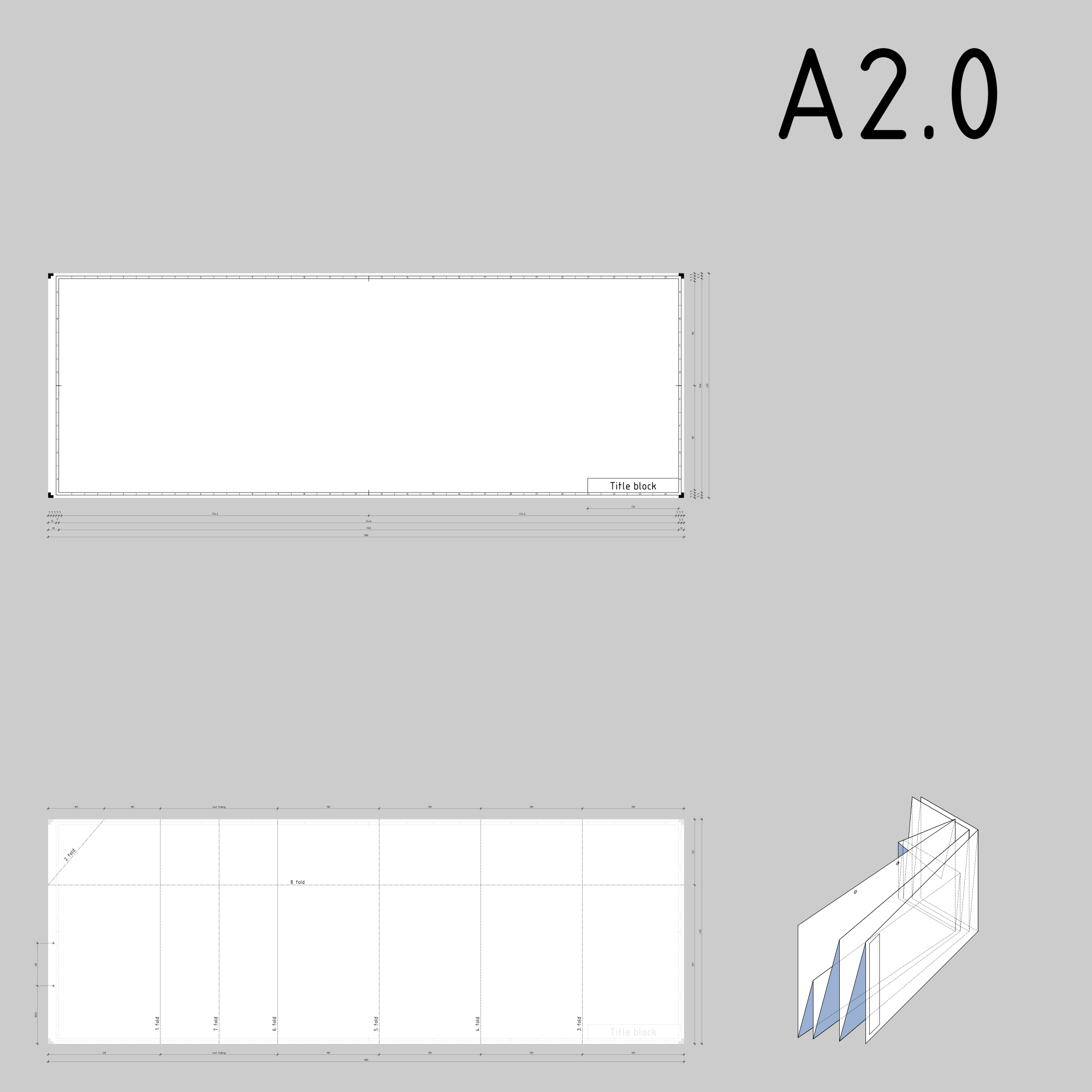

- Sheet layout of A2.0 sized technical drawings.
The paper size is DIN 823 and ISO 216 compatible -"the A series".
The layout is ISO 5457 compatible.
Other standards to handle with care: ISO 838 for filing holes and ISO 7200 for title block. - Tags
-
2014 , A2.0 , architecture , DIN , DIN 823 , DIN 824 , drafting , drawing , engineering , filing , folding , ISO , ISO 216 , ISO 838 , ISO 5457 , ISO 7200 , layout , Lazur , planning , sheet , size , technical , template , URH
