DIN A3.00 technical drawing format and folding
- By
- Lazur URH
- Created
- 2014-09-08
- Description

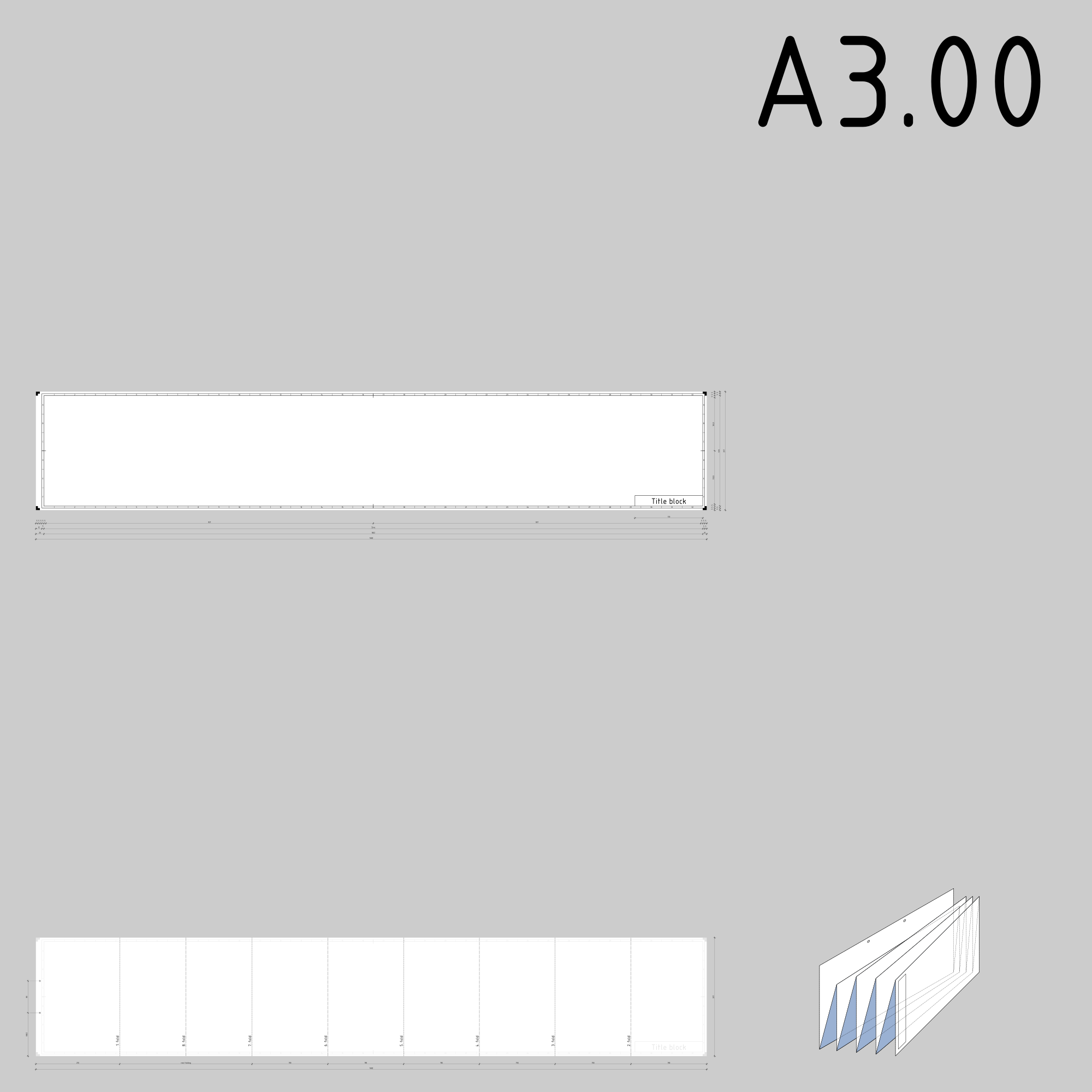

- Sheet layout of A3.00 sized technical drawings.
The paper size is DIN 823 and ISO 216 compatible -"the A series".
The layout is ISO 5457 compatible.
Other standards to handle with care: ISO 838 for filing holes and ISO 7200 for title block. - Tags
-
